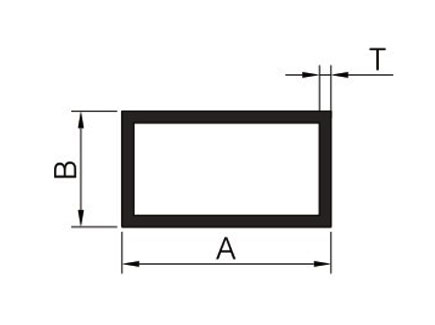

Tubo cuadrado





Nombre

A(mm)

B(mm)

T(mm)

kg/m

GL05

17

17

0.8

0.140

TS01

18.7

12.4

0.95

0.150

SK0633ST

20

10

1.4

0.206

SK0394GA

100

45

1.2

0.924

F2618

26

18

0.9

0.210

F048-1.0

20

20

1.0

0.210

F2020X1.5

20

20

1.5

0.300

F2525-1.1

25

25

1.1

0.284

F3825

38

25

1.2

0.393

F3825-1.0

38

25

1.0

0.330

F4040X2.0

40

40

2.0

0.929

F4545X1.4

45

45

1.4

0.659

F5025-1.2

50

25

1.2

0.471

F5050

50

50

1.2

0.632

F5050A

50

50

2.0

1.05

F6060X2.0

60

60

2.0

1.253

F7625-1.0

76

25

1.0

0.535

F7625

76

25

1.2

0.639

F7644-1.0

76

44

10

0.637

F7644

76

44

1.2

0.762

F7644-1.4

76

44

1.4

0.886

F8010X1.5

80

10

1.5

0.705

F8025

80

25

1.0

0.556

F8044

80

44

1.0

0.658

F8044-1.2

80

44

1.2

0.790

F8625-0.9

86

25

0.9

0.531

F8735-1.4

87

35

1.4

0.901

F8840X3.0

88

40

3.0

1.977

F9090

90

90

1.2

1.151

F1025-1.0

100

25

1.0

0.664

F1025

100

25

1.2

0.795

F1010-2.0

100

100

2.0

2.117

F1044

100

44

1.2

0.918

F1044-1.0

100

44

1.0

0.767

F1044-1.4

100

44

1.4

1.068

F1044-1.8

100

44

1.8

1.365

F1044-2.0

100

44

2.0

1.512

F1044-2.7

100

44

2.7

2.021

WLH089

101.6

50.8

1.8

1.446

WLH090

50.8

50.8

1.8

0.953

WLH091

50.8

25.4

1.8

0.708

WLH177

76

38

1.65

0.986

WLH191

100

50

1.7

1.346

WLH200

45

19

0.8

0.270

WLH201

38

38

0.8

0.322

WLH213

25.4

12.7

0.8

0.158

WLH215

50.8

25.4

0.8

0.322

WLH216

25.4

25.4

0.8

0.213

WLH233

50.4

25.4

1.4

0.555

F020

14.9

8.7

0.6

0.073

F022

50

25

1.0

0.394

F022-1.2

50

25

1.2

0.471

F025

88

25

1.0

0.600

F032

86

86

1.2

1.099

F033

86

86

1.2

1.099

F034

86

44

1.0

0.691

F035

86

44

1.2

0.827

F036

86

25

1.2

0.704

F037

15.8

12.4

0.8

0.115

F038

53

9.5

0.7

0.231

F039

15

5

0.7

0.07

F040

150

50

1.8

1.909

F040-2.5

150

50

2.5

2.633

F041

30

15

0.95

0.221

F042

90

25

0 9

0.550

F043

70

50

2.25

1.403

F044

30

30

1.0

0.313

F045

200

50

2.8

3.695

F046

60

60

1.5

0.948

F047

150

120

3.0

4.277

F048

20

20

1.0

0.21

F049

13

13

1.0

0.130

F050

22

22

1.2

0.270

F051

20

20

1.0

0.205

F052

35

12

1.1

0.266

F053

18

12

1.0

0.151

F054

20

12

1.0

0.162

F055

60

60

1.1

0.700

F056

25.4

25.4

0.9

0.238

F057

50.8

25.4

0.9

0.362

F058

38.2

25.4

0.9

0.3

F060

40

20

1.4

0.433

F061

125

25

1.5

1.191

F063

40

40

1.7

0.703

F064

80

40

1.7

1.071

F067

40

40

2.0

0.821

F069

80

40

1.1

0.7

F070

100

45

1.1

0.848

F072

28

25

1.1

0.302

F074

40

15

0.7

0.203

F076

25

25

0.65

0.171

F077

50

50

1.4

0.735

F078

50

25

1.4

0.546

F079

34

19

1.1

0.302

F080

25.4

25.4

3.18

0.763

F081

100

50

2.0

1.577

F084

120

60

1.2

1.151

F085

25

20

1.2

0.276

F086

50

30

1.0

0.421

CK023

40

40

0.7

0.297

CK138

40

40

1.1

0.462

CK139

50.8

25.4

1.1

0.44

CK140

80

40

1.4

0.886

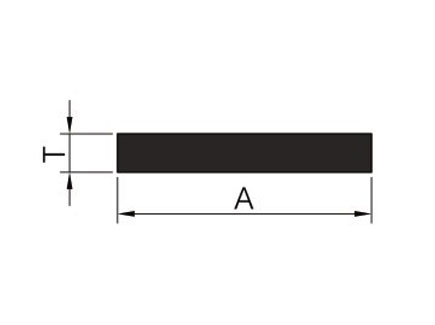

Pletina







Nombre

A(mm)

T(mm)

kg/m

B001

110

4

1.188

S045

50.6

3

0.409

SK0349ZZ

106

22.5

6.44

SK0350ZZ

73

50

9.855

SK0351ZZ

200

3

1.62

SK0352ZZ

200

3.5

1.89

SK0353ZZ

200

4

2-16

SK0451ZZ

185

25

12.48

SK0535XC

130

12

4.212

SK0602JJ

28

4

0.303

SK0605HS

50

6.2

0.867

SK0667DA

60

5

0.81

SK1001ZY

12.9

1.5

0.052

SK1109JB

15

5

0.203

SK1181JB

20

5

0.27

HW05

15

4

0.162

HW07

20

6

0.324

WLH129

50

4.2

0.567

WLH130

75

3.0

0.608

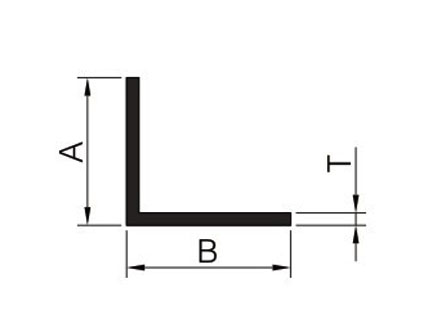

Contendiente









Nombre

A(mm)

B(mm)

T(mm)

kg/m

L018

12.7

12.7

0.9

0.06

L016

13

13

1.5

0.10

L010

19

19

0.9

0.09

L009

19

19

2.5

0.239

JJ10

20

18

2.0

0.194

L017

20

30

2.0

0.259

L013

20

9

1.4

0.104

L012

25.4

25.4

0.9

0.121

L011

25.4

25.4

2.5

0.326

L002

25

25

2.0

0.259

SK0641JC

30

15

1.8

0.210

S013-3.0

30

20

3.0

0.381

L006

35

25

3.0

0.462

L006

35

25

3.0

0.462

L003

35

35

3.5

0.629

L015

38.1

38.1

2.75

0.545

L007

38

20

2.75

0.41

S014-3.8

38

38

3.8

0.741

L004

39

50

5

1.134

S5050

50

50

4.8

1.234

SK1285JC

30

18

1.8

0.224

SK1762FG

36.5

12

3.81

0.460

CK021

25.2

25.2

3.0

0.384

CK143

20

20

1.4

0.146

CK144

25

25

1.2

0.158

CK145

15

15

1.2

0.093

WLH092

12.7

12.7

1.6

0.101

WLH093

15.9

15.9

1.6

0.129

WLH094

25.4

25.4

1.6

0.210

WLH151

21

12

2.5

0.206

WLH176

17

50

4

0.681

WLH182

9.5

22.2

1.6

0.130

WLH183

25

25

1.6

0.209

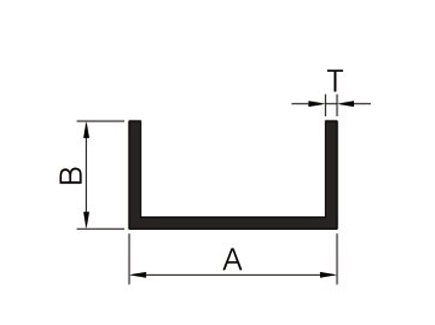

Perfil en U









Nombre

A(mm)

B(mm)

T(mm)

kg/m

FS17

15.5

30

3

0.49

FS18

14.7

30

3

0.48

10X10X0.6

10

10

0.6

0.050

8X8X0.7

8

8

0.7

0.043

A8000K-0.9

81

20

0.9

0.290

C1411X1.5

11

14.05

1.5

0.147

C1716

17

16

1.5

0.186

C2214

22

14

1.5

0.19

C2314X1.5

23

14.05

1.5

0.198

C2520X1.5

25

20

1.5

0.251

K8021

80

19

1.2

0.340

K8600K

86

20

0.9

0.302

S002

10

10

1.0

0.076

S002A

12

12

1.0

0.092

S002A-0.6

12

12

0.6

0.056

S002A-0.9

12

12

0.9

0.083

CK146

15

25

1.5

0.251

WLH095

14

14

1.6

0.166

WLH096

15

25

1.5

0.251

WLH140

29

35

1.4

0.364

Descripción del producto
Dibujo de nodo
Dibujo simple

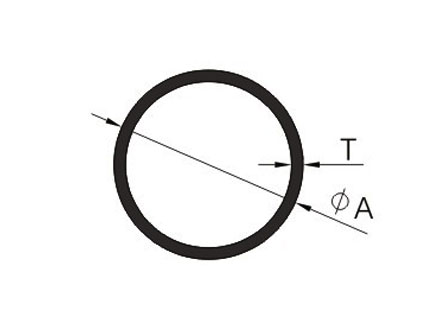

Tubo redondo







Nombre

A(mm)

T(mm)

kg/m

G001

26.3

0.9

0.194

G002

48.26

3.2

1.223

G003

22

1.1

0.178

G004

19

1.0

0.153

G006

14.8

1.2 ::

0.139

G007

25

1.0

0.204

G008

22

1.0

0.178

G009

19

1.0

0.153

G010

18

1.0

0.144

G011

15.8

1.2

0.149

G012

28

1.0

0.229

G013

21.5

0.8

0.141

G014

17.5

0.8

0.113

G014A

17.5

0.8

0.113

G015

119.7

1.9

1.899

G016

11

1.0

0.085

G017

18.8

1.1

0,165

G018

52.5

2.1

0.898

G019

58

8.0

3.393

G020

41.6

7.05

2.066

G021

45

Solid

4.294

G022

50

Solid

5.302

G023

64

Solid

8.686

G024

25

1.2

0.242

G025

39.2

1.2

0.387

G026

76

3

1.860

G027

19.2

1.5

0-225

G028

16

1.75

0.212

G029

18

1.5

0.210

G030

19.6

5.2

0.635

G031

50

2

0.814

G032

32

1.0

0.269

G033

35

1.0

0.295

G034

22

0.7

0.130

G035

27

1.1 _

0.242

G036

50

0.9

0.375

G037

10

Solid

0.212

G038

8

Solid

0.136

G039

10

1.0

0.076

G040

16

0.9

0.115

G041

16

1.0

0.127

G042

16

1.1

0.139

G043

19

0.9

0.138

G044

25

1.3

0.261

G045

28

1.3

0.295

G046

22

0.8

0.144

G047

25

0.8

0.164

G048

28

0.8

0.185

G049

29

1.2

0.283

G050

30

1.0

0.246

(3051

27.5

6.25

1.13

| G052

14.7

2.0

0.22

G053

28.5

2.65

0.59

G054

29.5

3.15

0.71

G055

26.5

1.65

0.35

G056

27.8

2.3

0.5

G057

27

5.5

1.01

G058

29

2.85

0.64

G059

23.6

2.7

0.42

G060

76

1.2

0.82

G061

46

4

1.425

G062

28

2.0

0.44

G063

35

2.0

0.56

G064

38

10.95

2.512

G065

56

2.2

1.004

G066

96

1.55

1.242

Name

A(mm)

T(mm)

kg/m |

G067

28.7

1.65

0.379

G068

25

1.42

0.284

G069

21.76

1.42

0.245

G070

18.52

1.4

0.203

G071

13.4

3.55

0.297

G072

18

4.75

0.534

G073

15.2

4.3

0.398

G074

202

6.0

9.975

G075

27.3

2.0

0.429

G076

50

1.4

0.577

G077

19

2.5

0.35

G078

30.5

Solid

1.973

G079

33

Solid

2.309

G080

29.15

1.35

0.318

G081

20.5

Solid

0.892

G082

25

0.9

0.184

G083

32.5

Solid

2.24

G084

31.5

Solid

2.104

G085

26.5

Solid

1.489

G086

35

Solid

2.598

G087

43.5

Solid

4.013

G088

13

1.0

0.102

G089

29.5

Solid

1.845

G090

27.7

6.85

1.212

G091

18.2

1.0

0.146

G092

23

5.75

0.841

G093

20.5

4.5

0.718

G094

33.5

Solid

2.380

G095

12

Solid

0.305

G096

24.5

8.25

1.137

G097

38

0.8

0.252

G098

25.4

2.8

0.537

G099

51.1

2.5

1.031

G100

38.5

Solid

3.143

G101

19

1

0.153

G102

35.8

1.3

0.381

G103

40.8

1.2

0.403

G104

45.8

1.1

0.417

G105

50.8

1

0.423

G106

24

2.5

0.456

G107

30

2.5

0.583

G108

12.6

1.6

0.149

G109

24.6

6.8

1.027

G110

22

2.9

0.470

G111

40

6

1.730

G112

26

4.9

0.877

G113

24

4.5

0.744

G114

32

0.8

0.212

G115

23.8

1.5

0.284

G116

53.8

2.1

0.921

G117

42

1

0.348

G118

46

1

0.382

G119

51

1

0.424

G120

55

1

0.458

G121

59

1

0.492

G122

65

2.2

1.172

G123

25.4

1.57

0.317

G124

26.3

6.9

1.136

G125

30

1.9

0.453

G127

70

1.3

0.758

G128

12.7

1

0.099

G129

80.2

2.6

1709

G130

63.3

2.3

1.186

G131

26.3

1.4

0.296

G132

50.1

2.2

0.894

G133

40.1

1.8

0.585

G134

25.07

1.3

0.263

G135

20.1

1.3

0.207

G136

25.3

1

0.206

G137

57.2

3.6

1.637

G138

56

7.1

2.910

G139

63.4

2.65

1.366

G140

101.8

2.5

2.106

G141

183

2.5

3.934

Name

A(mm)

T(mm)

kg/m

G142

68

19.75

8.083

G143

90

5

3.605

G144

70

5

2.757

G147

20

1.3

0.206

G148

24

1.5

0.286

G149

30

1.5

0.363

G150

38

1.55

0.48

G154

153

2.75

3.505

G155

38

2.0

0.611

G156

25

1.15

0.233

G157

22

1.15

0.203

G158

18

1.45

0.204

G159

15

1.15

0.135

G160

205

3.2

5.478

025

25

Solid

1.34

030

30

Solid

1.922

SKRB35

35

Solid

2.598

SKRB35.5

35.5

Solid

2.673

SKRB37

37

Solid

2.903

SKRB37.5

37.5

Solid

2.982

JJ09

12

1.5

0.134

TY02

54.4

1.45

0.651

GL12

75

1.1

0.69

SK0200TS

15.8

1.3

0.160

SK0201TS

22

1.2

0.212

SK0293WH

18.8

1.5

0.220

SK0385

16

4.75

0.453

SK0508XC

40

Solid

3.393

SK0514XC

36

3.7

1.014

SK0515XC

36

3.0

0.840

SK0590XC

32.4

2.45

0.636

SK0591XC

33

4.5

1.088

SK0593XC

32.5

3.15

0.784

SK0516XC

30

4.0

0.882

SK0592XC

12

3.45

0.145

SK0550XC

27

3.9

0.764

SK0546YL

96

30

16.795

SK0547YL

78

26

11.468

SK0529XC

42

6.4

1.933

SK0530XC

49

6.4

2.313

SK0549XC

34

2.9

0.765

SK0509XC

34

Solid

2.451

SK0589XC

20

3.5

0.490

SK0543XC

50

8.0

2.850

SK0610XC

37.9

5.0

1.395

SK0683XC

26.05

3.525

0.679

SK0684XC

12

2.65

0.210

SK0721XC

14

3.55

0.315

SK0730DW

25.4

3.15

0.595

SK0733FY

25

1.4

0.280

SK0734FY

19

1.2

0.181

SK0735FY

6

Solid

0.076

SK0736FY

32

1.2

0.314

SK0738FY

16

1.2

0.151

SK0786HQ

11.9

0.95

0.088

SK1122JB

60

2.5

1.219

SK1160JB

8

Solid

0.136

SK1172JB

16

2

0.238

SK1188JB

13

1.0

0.102

SK1204JB

22

2.0

0.339

SK1429YF

18.9

1.4

0.208

SK1589JC

24

2.5

0.456

SK1624JB

22

1.0

0.178

SK1631JB

25

1.4

0.280

SK1632JB

19

1.2

0.181

SK1648JB

25

1.0

0.204

SK1665JC

28.9

2.95

0.649

SK1722JB

28

1.2

0.273

SK1736QS

24

2.75

0.496

SK1758JB

25

1.35

0.271

WLH157

25.4

7.7

1.156

WLH166

12.6

Solid

0.337

WLH202

19

0.7

0.109
